CA50 In Floor Glass Supporting System

CA50 In Floor Glass Supporting System

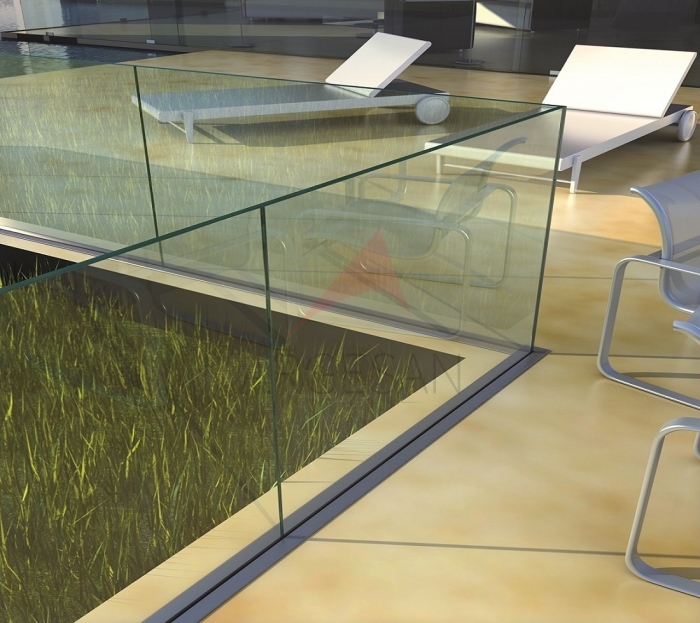

CA50 Aluminium in floor glass supporting systems provide the durability by making the connection between floor and glass.It provides more view space.In floor fixing parts are closed with caps which have special gaskets on it.

Aesthetic view appears when floor fixing parts are closed with 6 meter cap profile.

12 mm - 16 mm and 20 mm tempered and laminated glasses are suitable for this profile.


Material
  • Aluminium

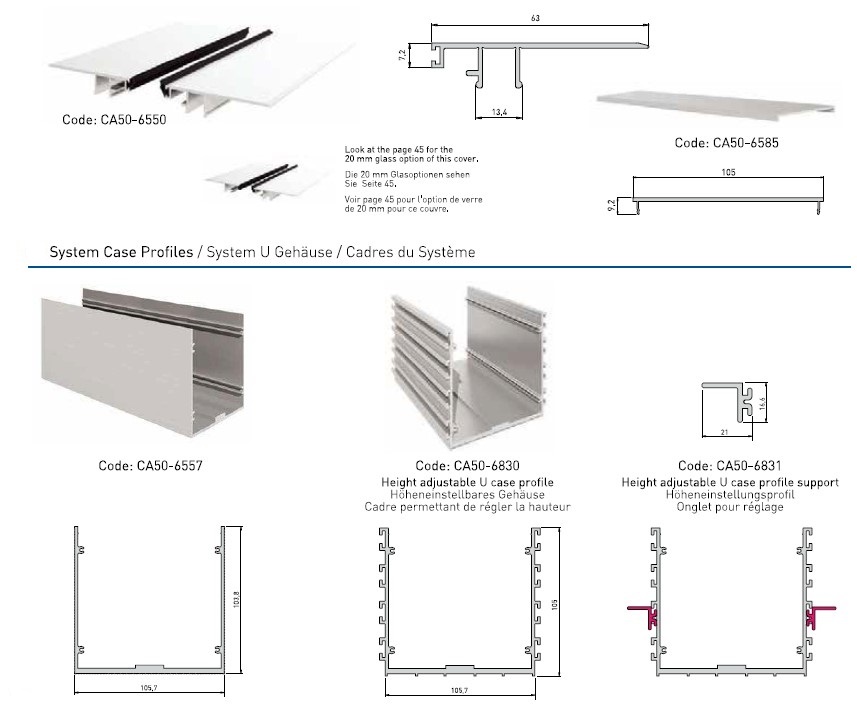

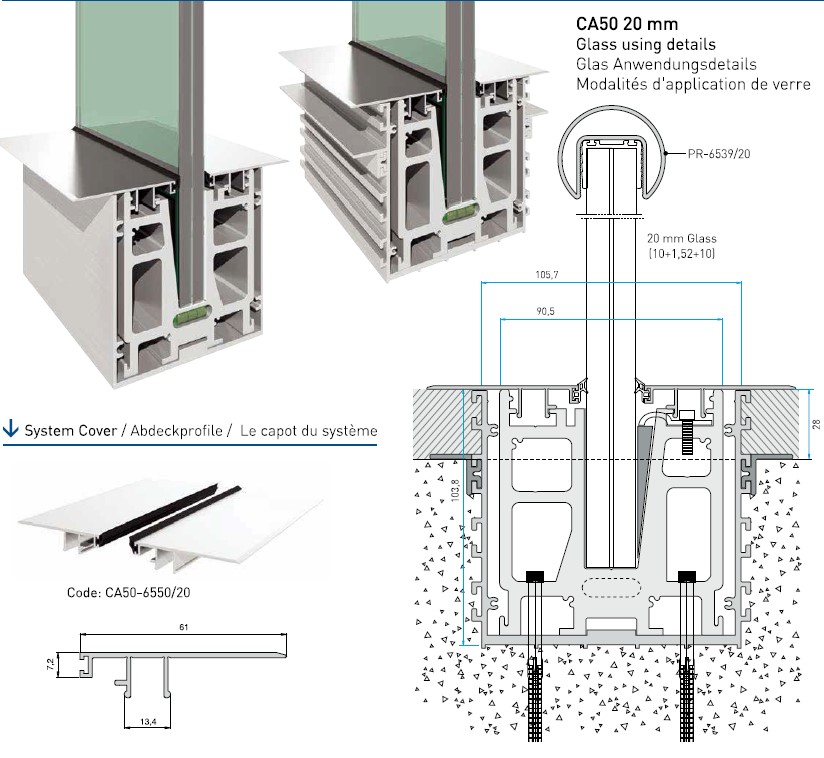

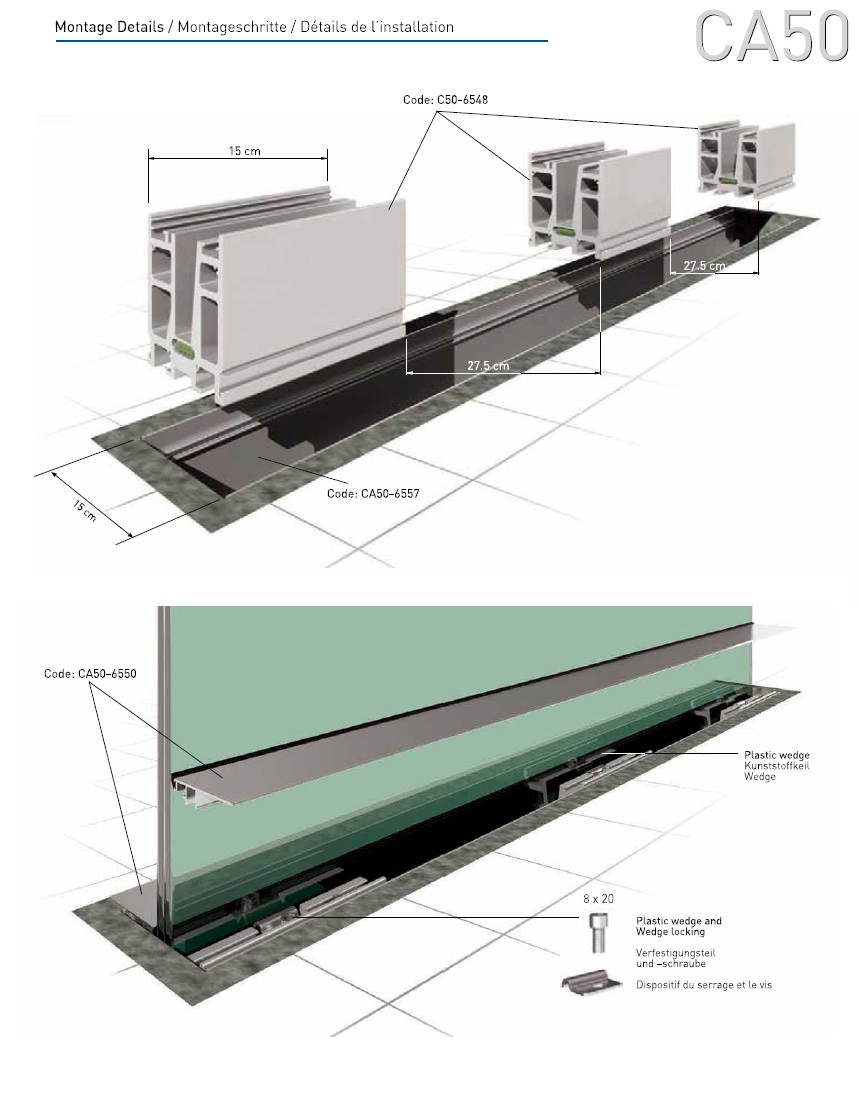

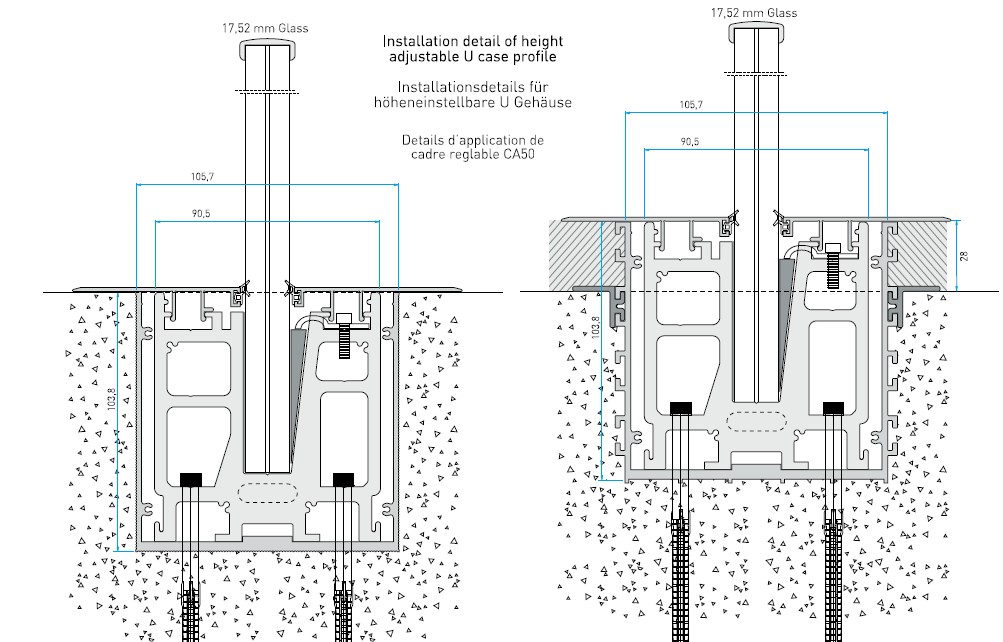

TECHNICAL DRAWING

CA50 In Floor Glass Supporting System Teknik Çizim CA50 In Floor Glass Supporting System Teknik Çizim CA50 In Floor Glass Supporting System Teknik Çizim CA50 In Floor Glass Supporting System Teknik Çizim
