AR 3012 Glass to Glass Hinge

Home Bathroom Accessories Hinge Group AR 3012 Glass to Glass Hinge

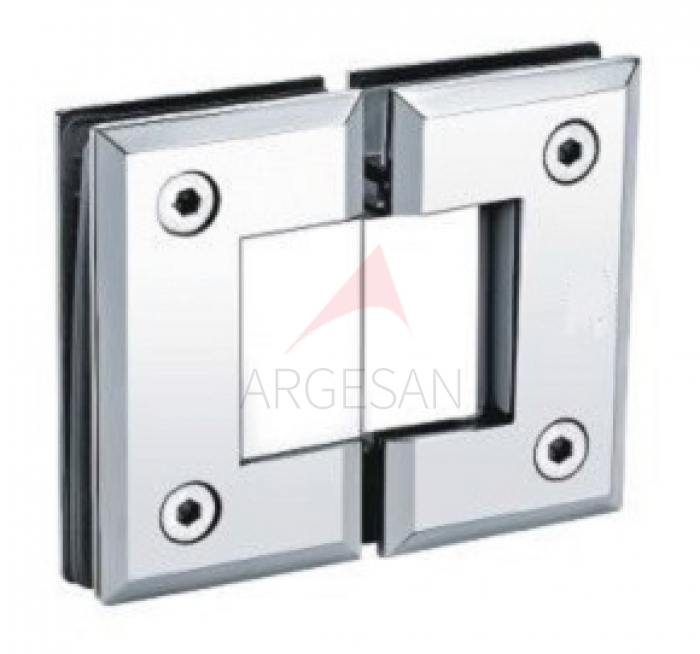

AR 3012 Glass to Glass Hinge


APPLICABLE SCOPE   Suitable for door 1800 x 650 mm , thickness 8-12 mm , the largest loading of a pair of product is 45 kgs.
FUNCTION   Fixed glass hanging type, installation status is of 180°, ±90° rotation.
FEATURES   When the door is opened between ± 35° can be automatically shut down .
MATERIAL   AISI 304 AND AISI 316 .
FINISHING   Mirror or Satin
Material
  • AISI 304 - AISI 316
  • Mirror or Satin

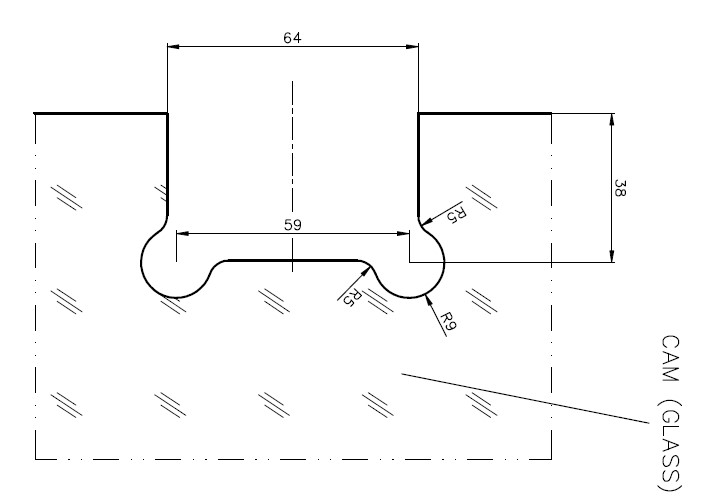

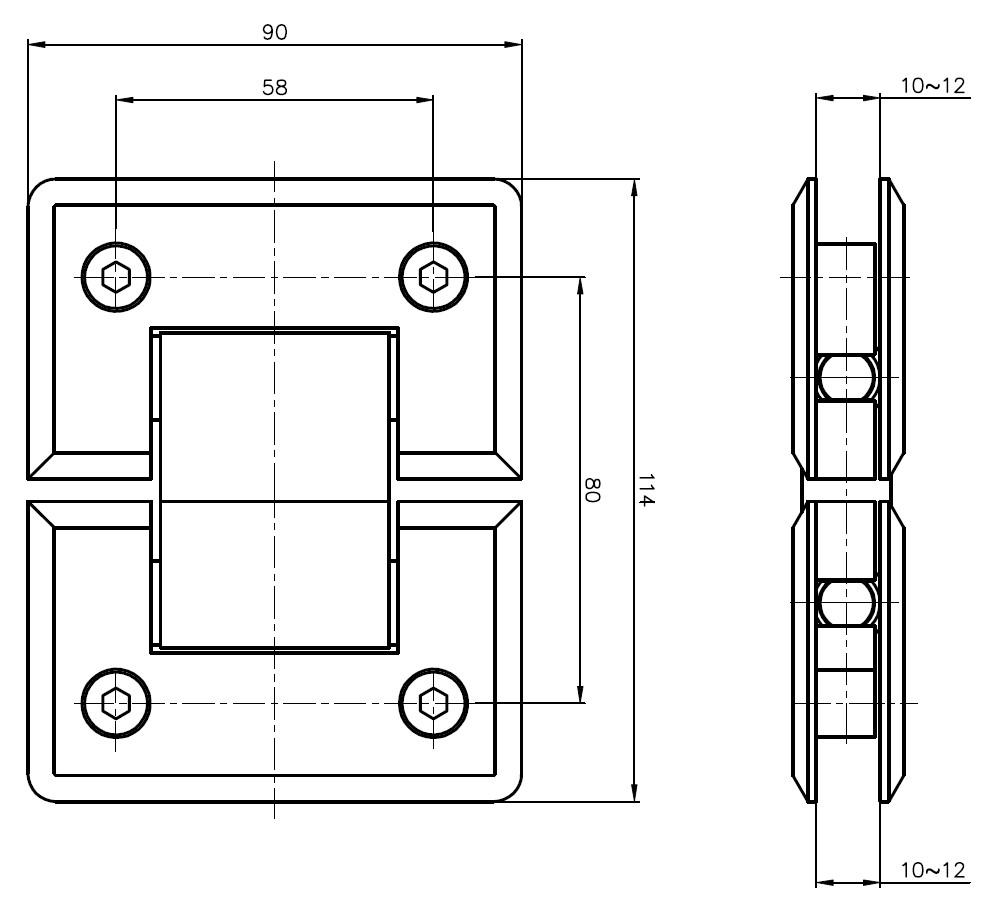

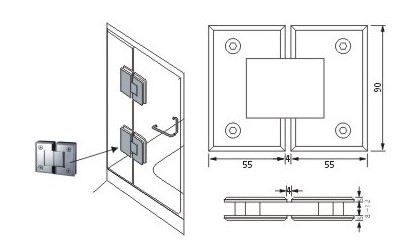

TECHNICAL DRAWING

AR 3012 Glass to Glass Hinge Teknik Çizim AR 3012 Glass to Glass Hinge Teknik Çizim AR 3012 Glass to Glass Hinge Teknik Çizim
