AR 3015 Glass to Wall Hinge

Home Bathroom Accessories Hinge Group AR 3015 Glass to Wall Hinge

AR 3015 Glass to Wall Hinge


APPLICABLE SCOPE

Suitable for door 1800 x 650 mm , thickness 8-12, the largest loading of a pair of product is 45 kgs.

FEATURES

When the door is opened between ± 35° can be automatically shut down .

MATERIAL

AISI 304 or AISI 316

FINISHING

Mirror or Satin


Material
  • AISI 304 - AISI 316
  • Mirror or Satin

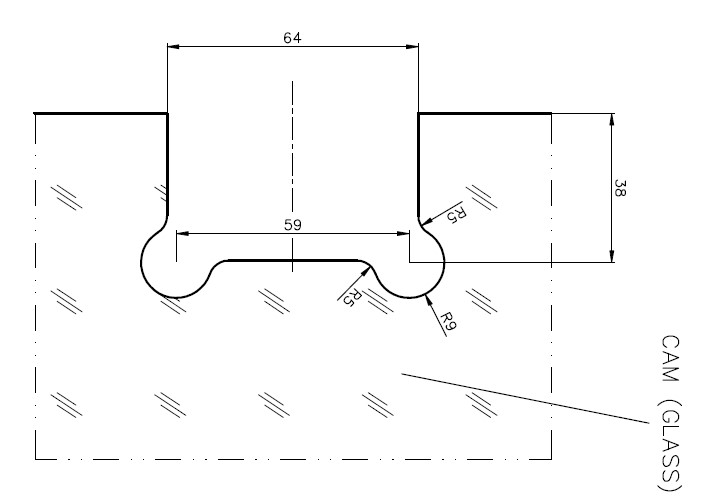

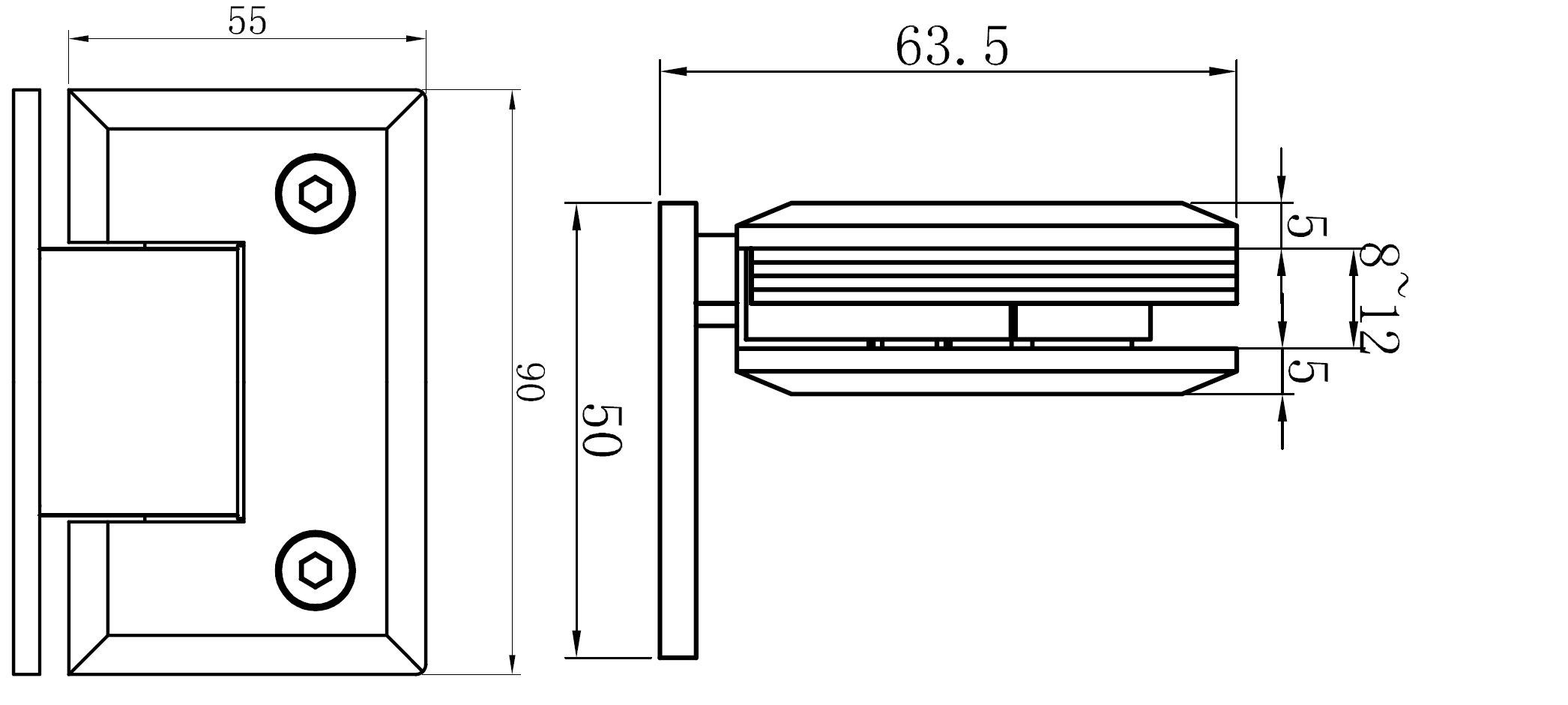

TECHNICAL DRAWING

AR 3015 Glass to Wall Hinge Teknik Çizim AR 3015 Glass to Wall Hinge Teknik Çizim AR 3015 Glass to Wall Hinge Teknik Çizim
