AR 4014 Glass to Glass Corner Hinge

Home Bathroom Accessories Hinge Group AR 4014 Glass to Glass Corner Hinge

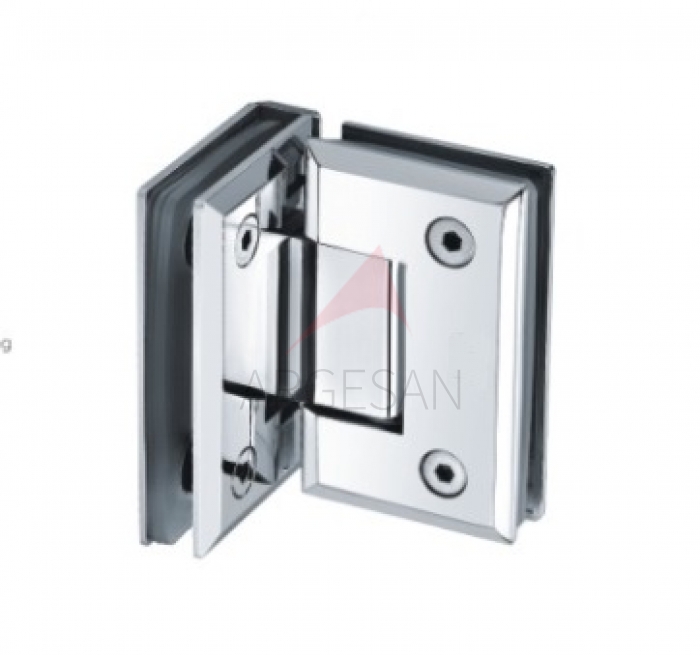

AR 4014 Glass to Glass Corner Hinge


APPLICABLE SCOPE   Suitable for door 1800 x 650 mm , thickness 8-12 mm , the largest loading of a pair of product is 45 kgs.   FUNCTION   Fixed glass hanging type, installation status is of 90°, ±90° rotation.   FEATURES   When the door is opened between ± 35° can be automatically shut down .   MATERIAL   AISI 304 AND AISI 316 .   FINISHING   Mirror or Satin

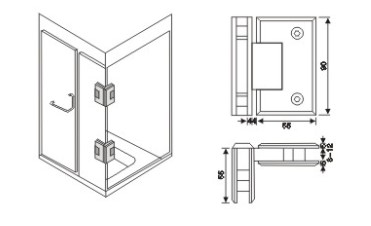

TECHNICAL DRAWING

AR 4014 Glass to Glass Corner Hinge Teknik Çizim
